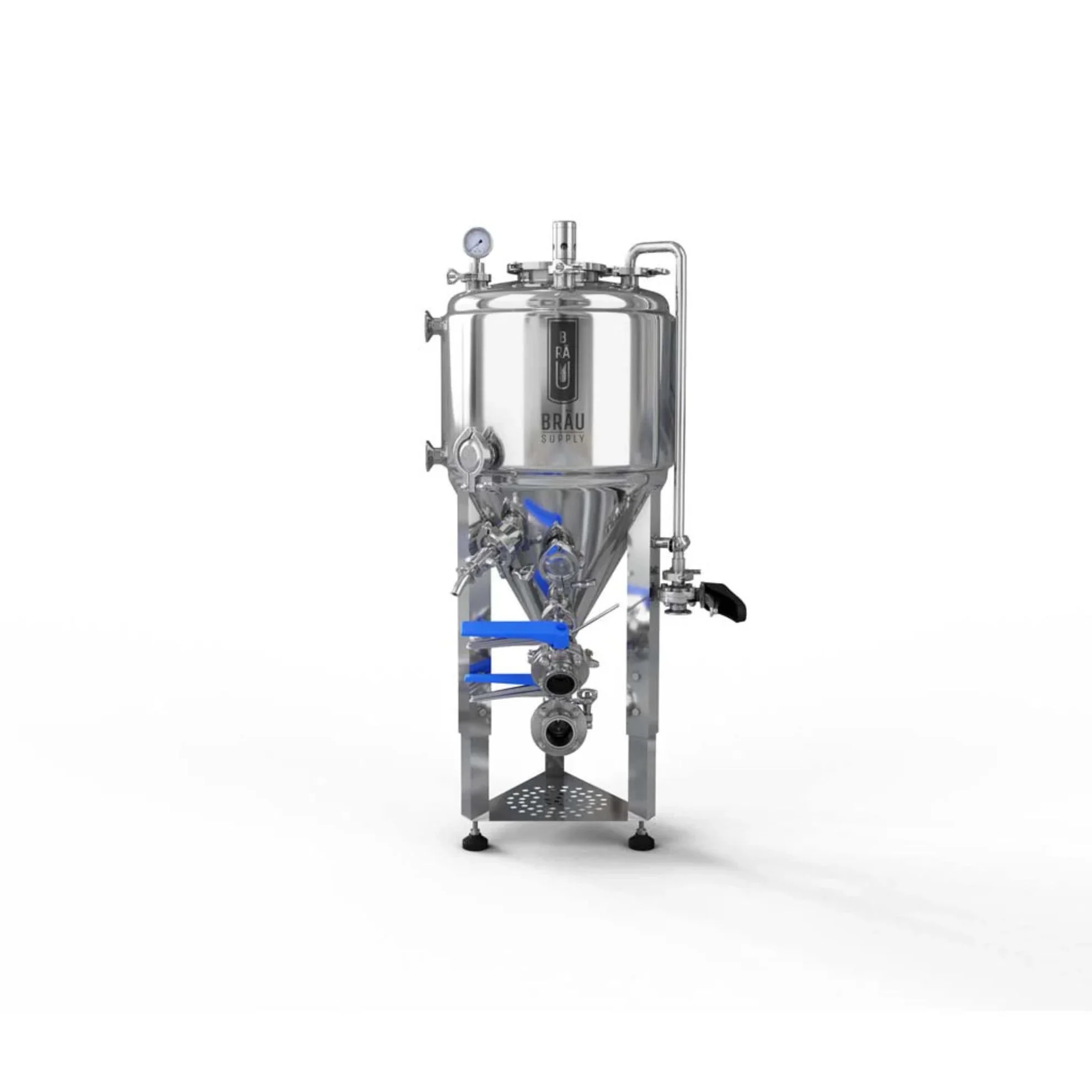

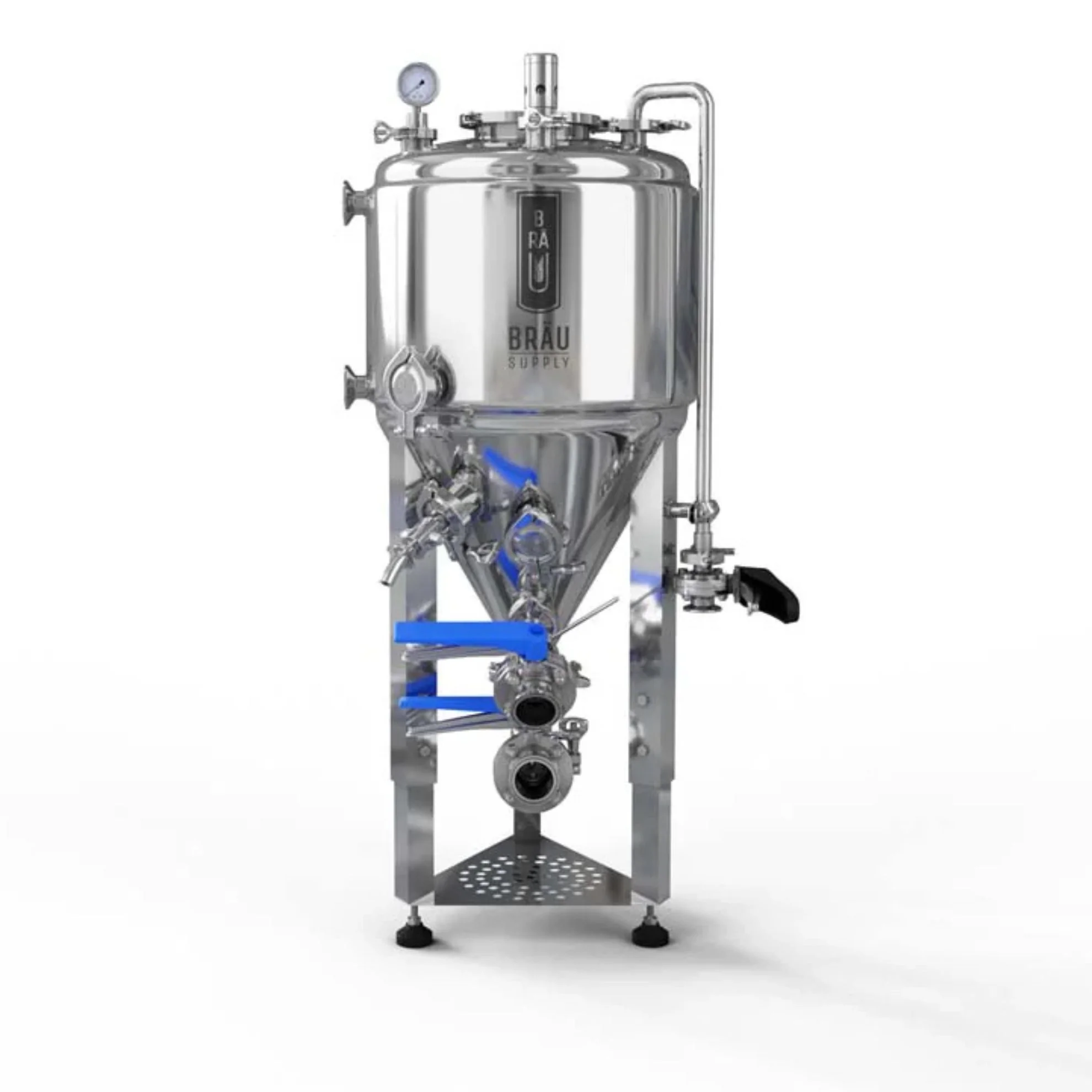

13 Gal (50L) Jacketed Conical Fermenter

Take your brewing to the next level with the Unitank – 13 Gal (50L) Jacketed Conical Fermenter—built to give you complete control over fermentation, cleaner beer, and a truly professional brewing experience at home or in R&D setups.

Why You’ll Love The Unitank – 13 Gal (50L) Jacketed Conical Fermenter

1. Pressure-capable for better fermentation control
   Rated to 15 PSI, this unitank allows pressure fermentation and closed transfers—helping you reduce oxygen exposure and produce cleaner, more stable beer.

2. Efficient glycol cooling without complexity
   The fully welded body-only glycol jacket delivers consistent temperature control while keeping the interior open—making cleaning easier and more effective.

3. Built for serious sanitation standards
   With fully tri-clamp sanitary connections and smooth internal surfaces, you can clean thoroughly and consistently—reducing contamination risk and improving repeatability.

4. Compact size, professional capability
   Designed for ~10 gallon batches with 13 gallon capacity, this unitank brings pro-level features into a manageable footprint—ideal for advanced homebrewers or pilot systems.

Your life, with the Unitank – 13 Gal (50L) Jacketed Conical Fermenter

Brewing becomes more precise—and far more enjoyable.

You’re not worrying about temperature swings or oxygen exposure. Instead, you’re confidently running pressure fermentations, dialing in profiles, and transferring beer cleanly.

Cleaning is straightforward. Monitoring is simple. Every batch feels controlled.

Whether you’re refining recipes or pushing into more advanced techniques, this is where your setup starts to feel truly professional.

The Unitank – 13 Gal (50L) Jacketed Conical Fermenter in a nutshell:

1. Pressure Fermentation Ready – Supports spunding, natural carbonation, and oxygen-minimised transfers for better flavour stability.

2. CIP Compatible Design – Smooth internal surfaces and tri-clamp fittings allow efficient cleaning cycles and easier sanitation.

3. Fully Equipped Out of the Box – Includes valves, clamps, gaskets, and fittings—so you can get brewing without sourcing extra components.

4. Open Interior Design – No internal coils means easier inspection and cleaning, while still benefiting from effective external cooling.

Unitank – 13 Gal (50L) Jacketed Conical Fermenter specifications

Construction

• 304 stainless steel

• Wall thickness: 1.5 mm

• Sanitary tri-clamp connections throughout

Capacity

• Total capacity: 13 gal (50 L)

• Typical working volume: ~10 gal

Pressure & Fermentation

• Pressure rating: 15 psi (1 bar)

• Pressure fermentation capable

• Closed transfer compatible

Cooling System

• Fully welded glycol jacket (cylindrical body only)

Ports & Connections

• All process connections: 1.5″ tri-clamp

• Bottom dump: 2″ tri-clamp

• Manway: 6″ tri-clamp with reducing cap and 3″ cap

Included Components

• Sample valve

• Analog pressure gauge (0–30 psi)

• 15 psi PRV

• Blow-off cane

• (2) 1.5″ butterfly valves

• (1) 2″ butterfly dump valve

• 2″ tri-clamp elbow

• Full set of clamps, gaskets, and caps

• Adjustable stainless legs with leveling feet

Design Features

• Smooth internal geometry for easy cleaning

• CIP compatible design

• Sight reference/ruler included

Unitank – 13 Gal (50L) Jacketed Conical Fermenter documents and materials

For full technical specifications, setup guidance, and dimensional references, please refer to the supplier documentation provided.

Safety Disclaimer:
This product should be used at your own risk. The information provided on this page is for general guidance only and should not be considered professional or medical advice. Brewing involves pressure, temperature, and chemical processes that can vary between users. Always follow manufacturer guidelines and consult a qualified professional if you are unsure.
