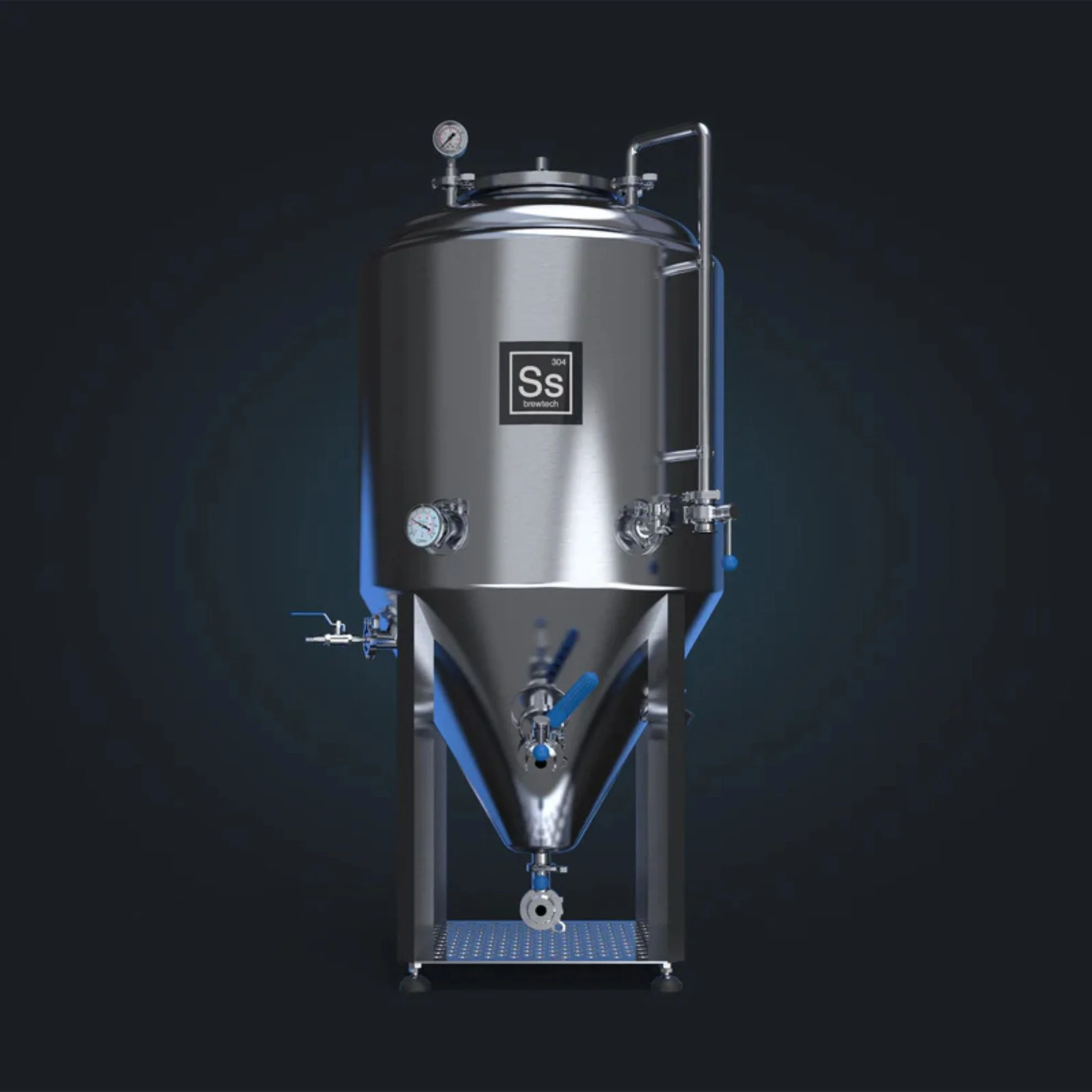

2 bbl | Nano Jacketed Unitank

Step into full control of your brewing process with the 2 bbl | Nano Jacketed Unitank—designed to help you produce cleaner, more consistent beer with professional-level precision.

Why You’ll Love The 2 bbl | Nano Jacketed Unitank

1. Professional-grade build for serious brewers
   With a 3 mm inner wall and 2 mm glycol jacket, this unitank delivers durability and thermal stability—so you can brew with confidence, batch after batch.

2. Precise temperature control, better results
   The jacketed cone and body design allows you to control fermentation temperatures accurately—helping you achieve cleaner flavours and more consistent outcomes.

3. All-in-one fermentation and carbonation
   Featuring a 17 PSI PRV lid and integrated carb stone, you can ferment under pressure and carbonate in the same vessel—saving time while protecting flavour and aroma.

4. Flexible brewing as you scale
   With parallel-connected jackets for half batching, you can run smaller test batches or scale production efficiently without compromising quality.

Your life, with the 2 bbl | Nano Jacketed Unitank

Brewing starts to feel different.

You’re no longer adjusting on the fly or second-guessing your process. Temperatures stay where they should. Transfers are smooth. Sampling is clean and controlled.

You can focus on refining recipes, improving consistency, and building something you’re proud to serve.

Whether you’re stepping up from a smaller setup or tightening up your nano brewery, this is where your process becomes reliable—and repeatable.

The 2 bbl | Nano Jacketed Unitank in a nutshell:

1. Integrated Dry Hop Port – The 3″ lid port makes dry hopping simple while reducing oxygen exposure, helping you preserve hop aroma and flavour.

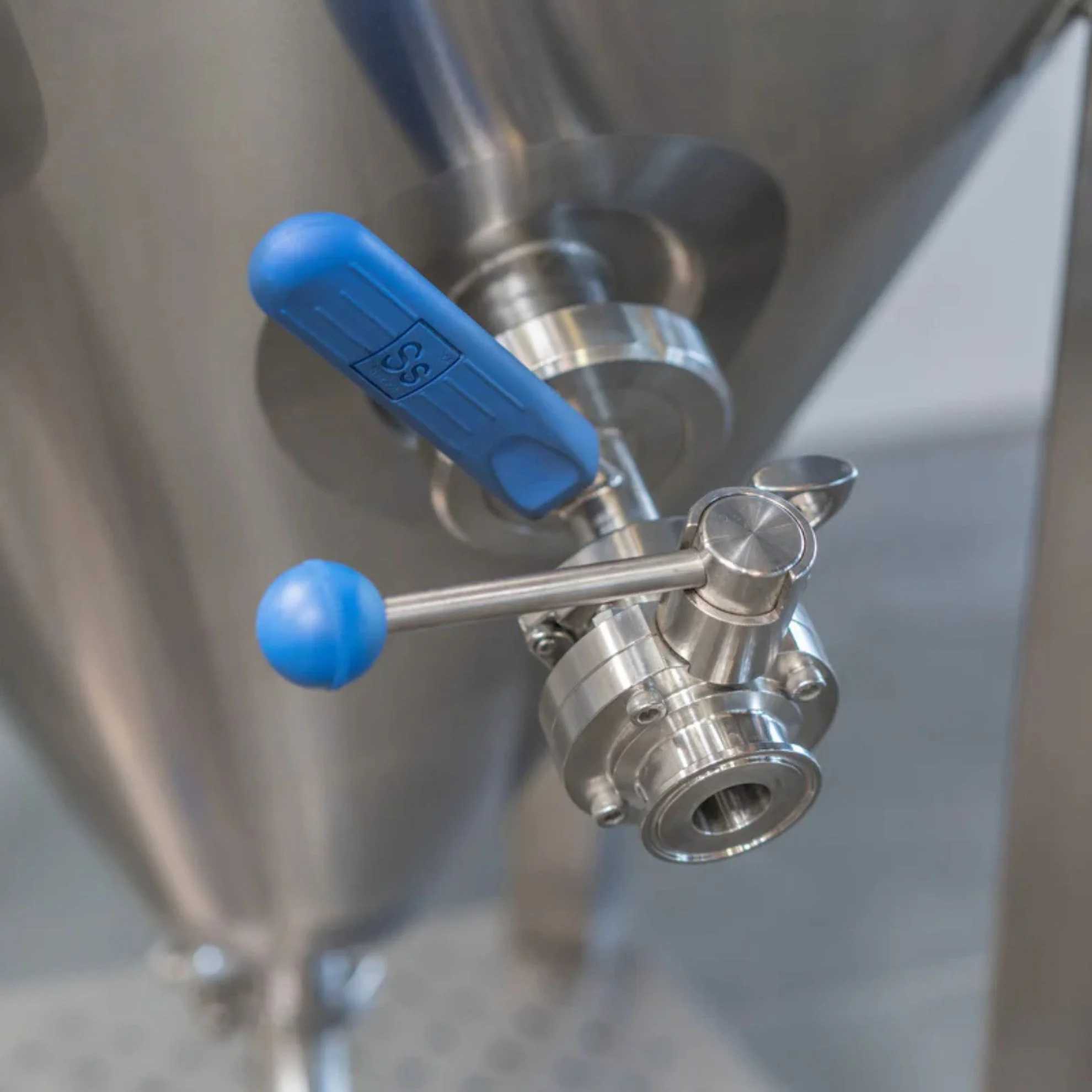

2. Rotatable Racking Arm – The 1.5″ TC racking arm gives you control over where you draw from, improving clarity and reducing waste.

3. Built-in Sampling & Monitoring – A Zwickle sampling valve and analog thermometer let you check progress quickly without disrupting your batch.

4. Stable, Heavy-Duty Base – The 4 mm stiffener plate with adjustable feet ensures a secure, level setup even when fully loaded.

2 bbl | Nano Jacketed Unitank specifications

Construction

• 3 mm inner wall

• 2 mm dimpled glycol jacket

• 1.5 mm outer wall

Jacketing System

• Lower cone and body glycol jacket

• Parallel-connected cylinder and cone jackets

• 1/2″ NPT glycol inlet and outlet ports with internal jacket tie

Pressure & Lid

• Lid cap with 3″ dry hop port

• 17 PSI pressure relief valve (PRV)

• Blow off tube included

• Sanitary pressure gauge

Brewing & Sampling Features

• Zwickle-style sampling valve

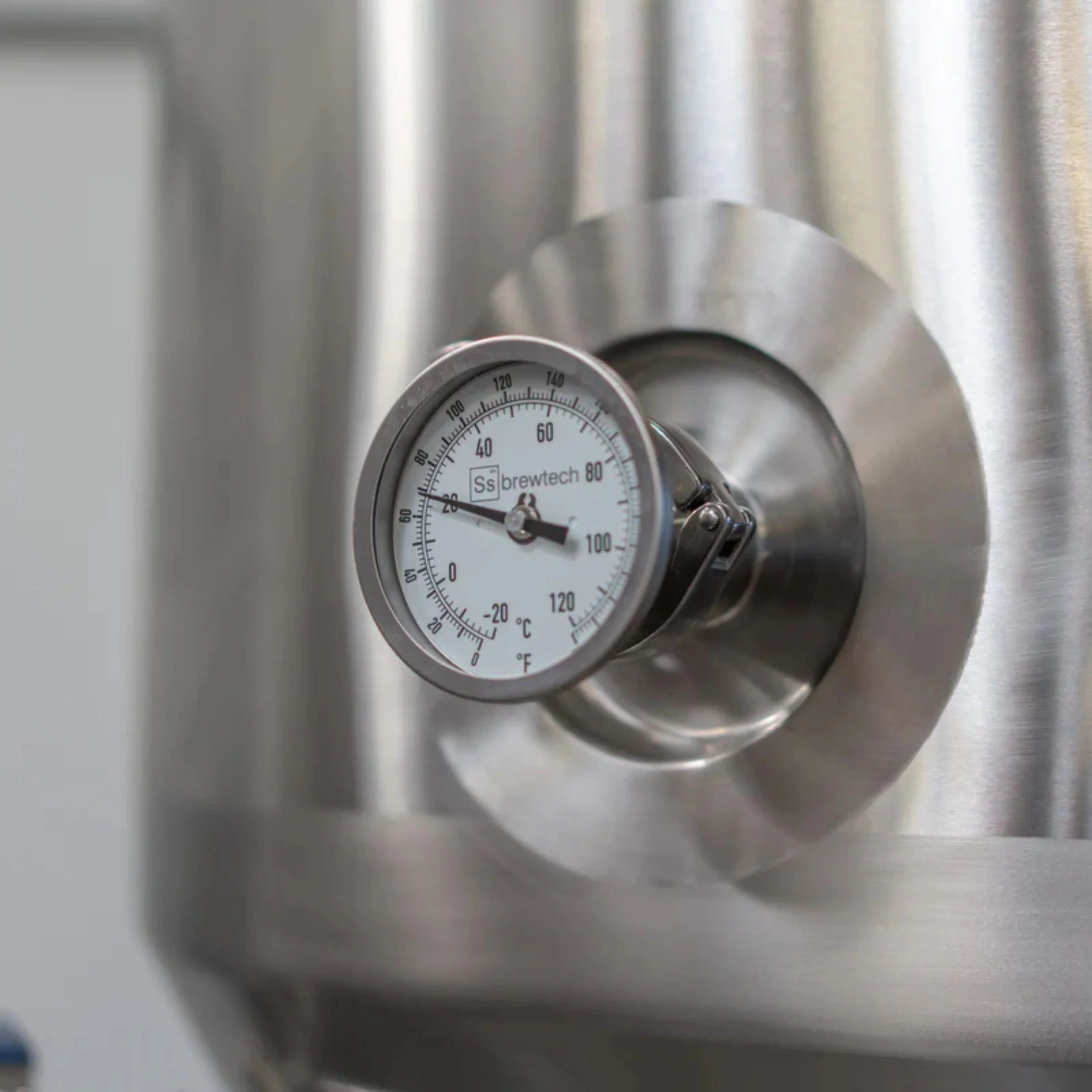

• Analog thermometer

• 1.5″ TC rotatable racking arm with DIN nut

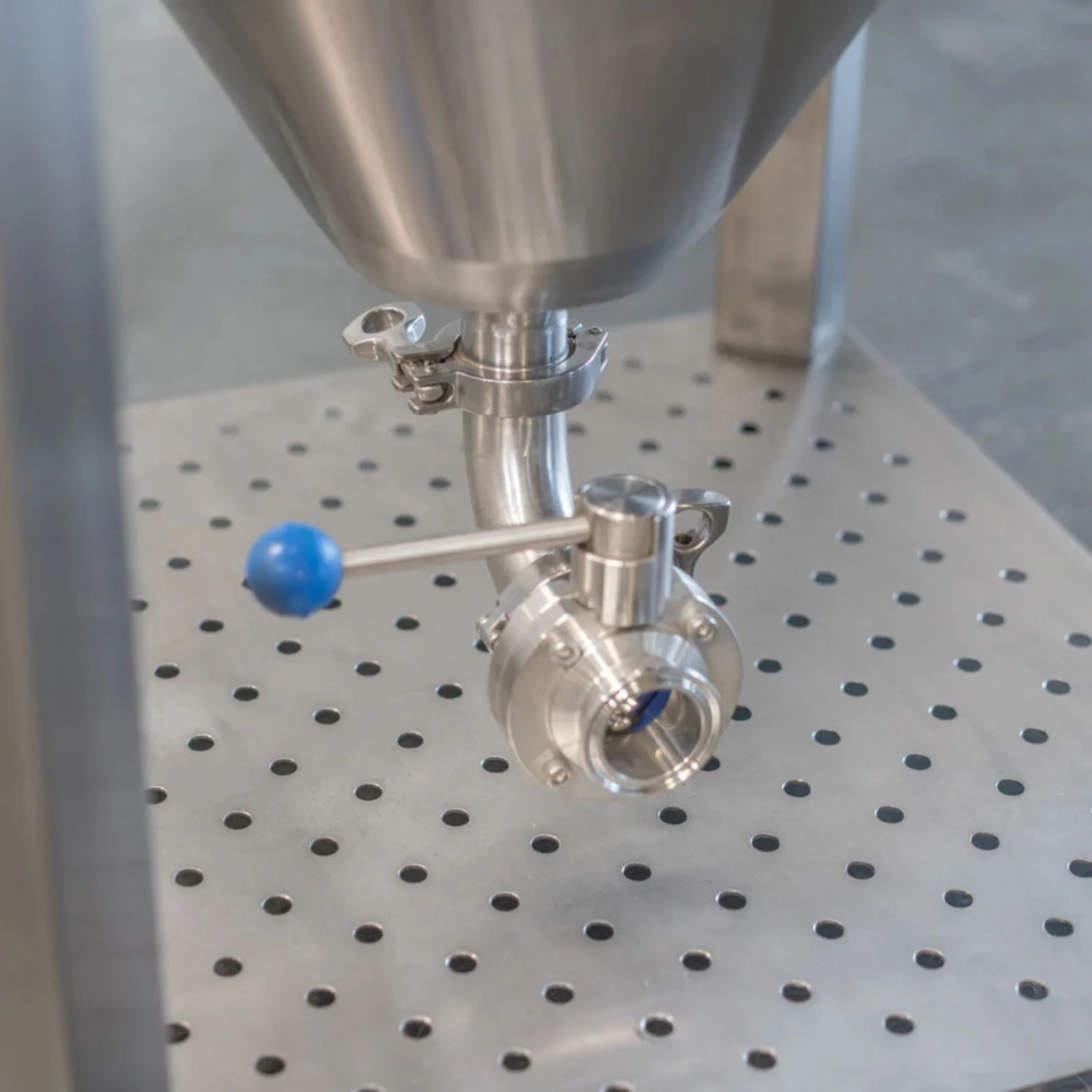

• 1.5″ lower dump port

Carbonation System

• 316 stainless steel carb stone with valve

Temperature Monitoring

• Cone-mounted sleeved RTD port

• RTD probe included

Structure & Support

• 4 mm lower stiffener plate

• Adjustable feet

Dimensions

• 2 bbl: 35″ width x 69″ height

2 bbl | Nano Jacketed Unitank documents and materials

For technical drawings, setup instructions, and full documentation, please refer to the official Ss Brewtech supplier link provided.

Safety Disclaimer:
This product should be used at your own risk. The information provided on this page is for general guidance only and should not be considered professional or medical advice. Brewing involves pressure, temperature, and chemical processes that can vary between users. Always follow manufacturer guidelines and consult a qualified professional if you are unsure.
