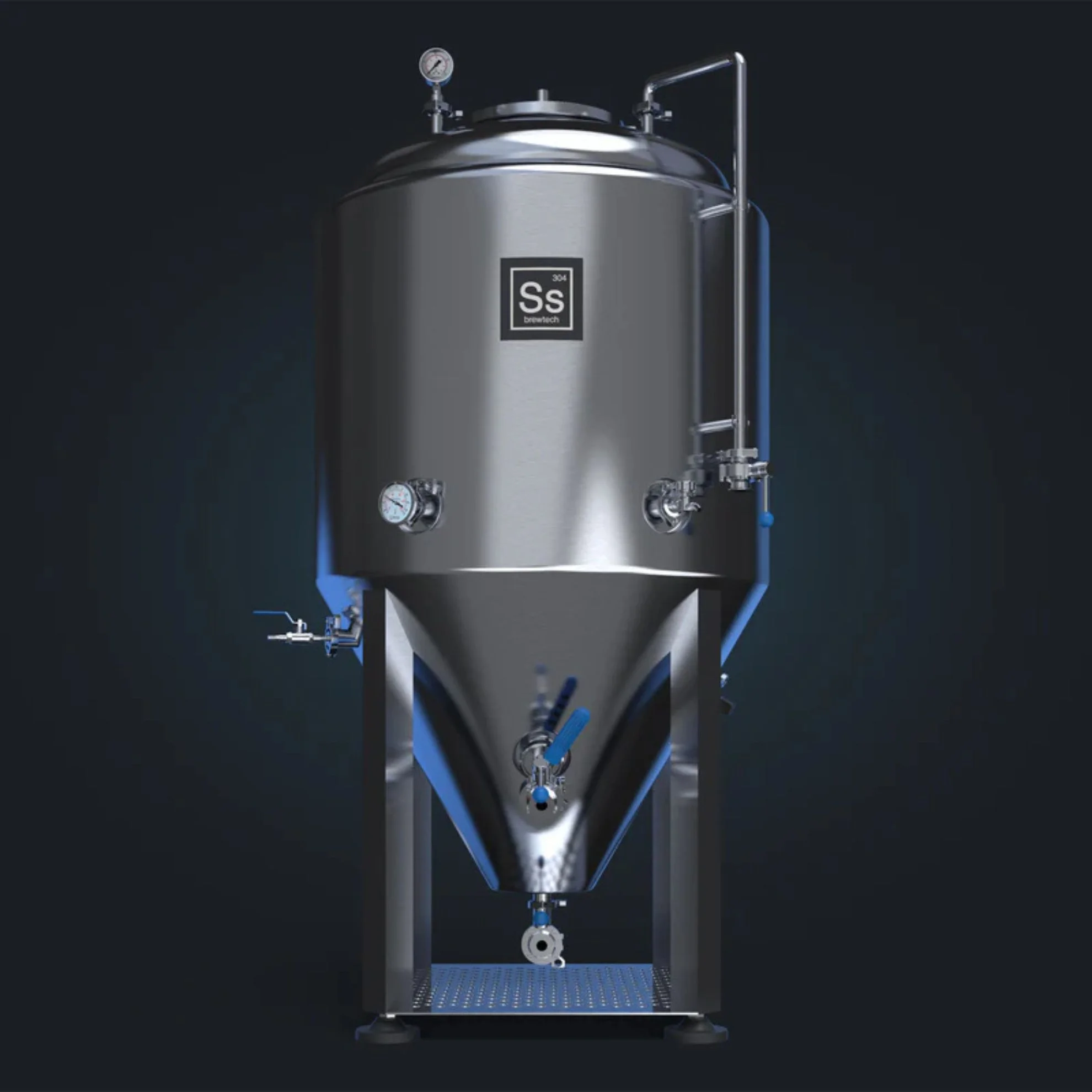

3.5 bbl | Nano Jacketed Unitank

Take full control of your fermentation and carbonation with the 3.5 bbl | Nano Jacketed Unitank—built to deliver professional-grade brewing results with consistency, precision, and confidence.

Why You’ll Love The 3.5 bbl | Nano Jacketed Unitank

1. True commercial-grade construction
   Built with a 3 mm inner wall and 2 mm glycol jacket, you get serious durability and thermal control—so your fermentation stays stable and your results stay repeatable.

2. Precision temperature control for better beer
   With jacketed cone and body glycol zones, you can dial in fermentation temperatures exactly—helping you produce cleaner profiles, better attenuation, and consistent batches.

3. Designed for pressure fermentation & carbonation
   The 17 PSI PRV lid with integrated carb stone allows you to ferment under pressure and carbonate in the same vessel—saving time while improving flavor retention.

4. Flexible batching for growing operations
   Thanks to parallel-connected jackets, you can run half batches efficiently—giving you the flexibility to experiment, scale, or manage production without compromise.

Your life, with the 3.5 bbl | Nano Jacketed Unitank

You’re no longer guessing or fighting inconsistent batches.

Instead, you’re running a system that responds exactly how you need it to. Fermentation temps stay locked in. Sampling is clean and controlled. Transfers are smooth.

You can confidently experiment with new recipes or refine your core lineup—knowing the equipment won’t hold you back.

Whether you’re running a nano brewery or serious home setup, this is where your process starts to feel dialled in, repeatable, and professional.

The 3.5 bbl | Nano Jacketed Unitank in a nutshell:

1. Integrated Dry Hop Port – The 3″ port built into the lid makes dry hopping easier and safer, reducing oxygen exposure while improving hop character.

2. Rotatable Racking Arm – The 1.5″ TC racking arm allows precise positioning, helping you pull clear beer and reduce product loss.

3. Sampling & Monitoring Built In – With a Zwickle sampling valve and analog thermometer, you can check progress quickly without disrupting the batch.

4. Heavy-Duty Stability – A 4 mm stiffener plate with adjustable feet keeps the tank stable and secure, even when fully loaded.

3.5 bbl | Nano Jacketed Unitank specifications

Construction

• 3 mm inner wall

• 2 mm dimpled glycol jacket

• 1.5 mm outer wall

Jacketing System

• Lower cone and body glycol jacket

• Parallel-connected cylinder and cone jackets

• 1/2″ NPT glycol inlet and outlet ports with internal jacket tie

Pressure & Lid

• Lid cap with 3″ dry hop port

• 17 PSI pressure relief valve (PRV)

• Blow off tube included

• Sanitary pressure gauge

Brewing & Sampling Features

• Zwickle-style sampling valve

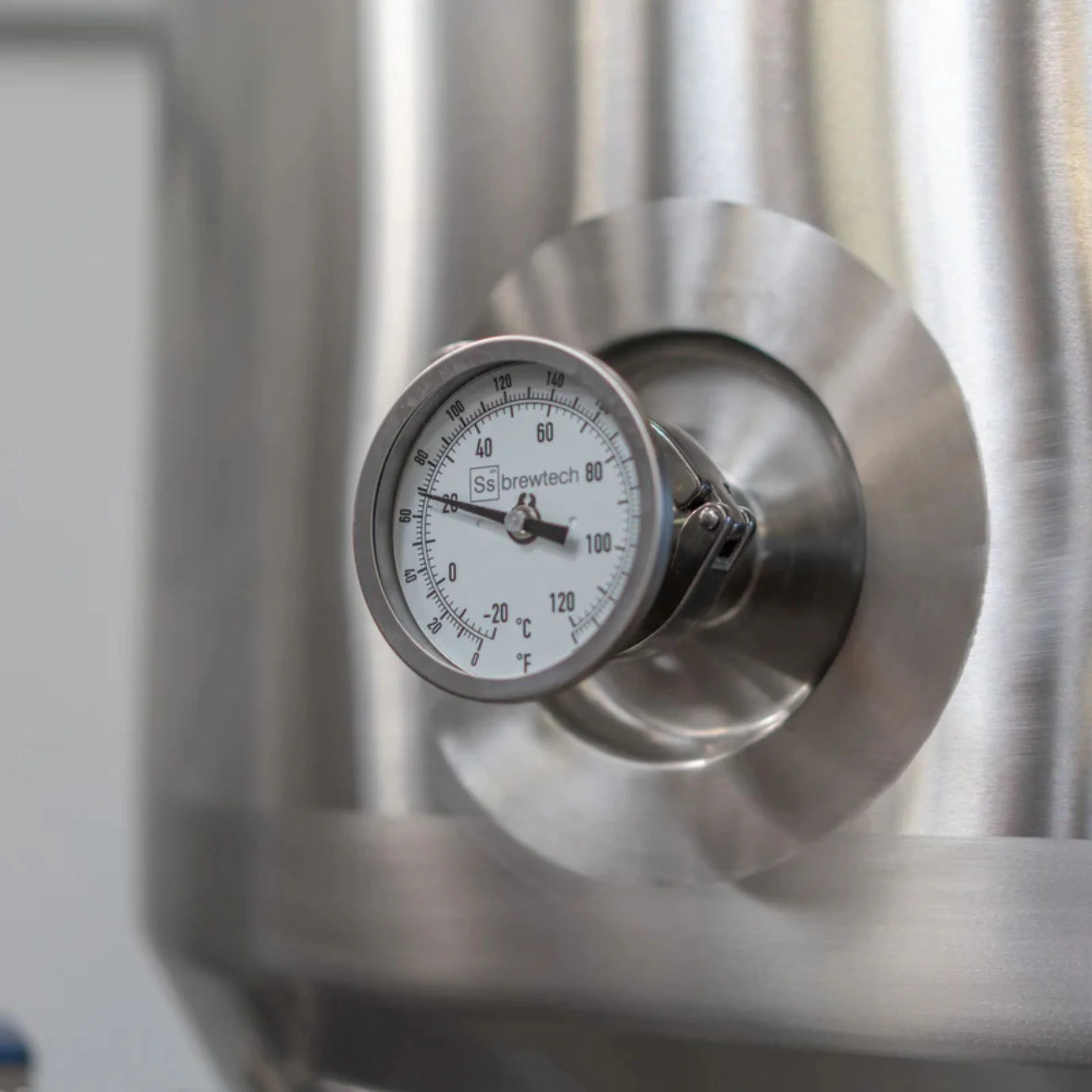

• Analog thermometer

• 1.5″ TC rotatable racking arm with DIN nut

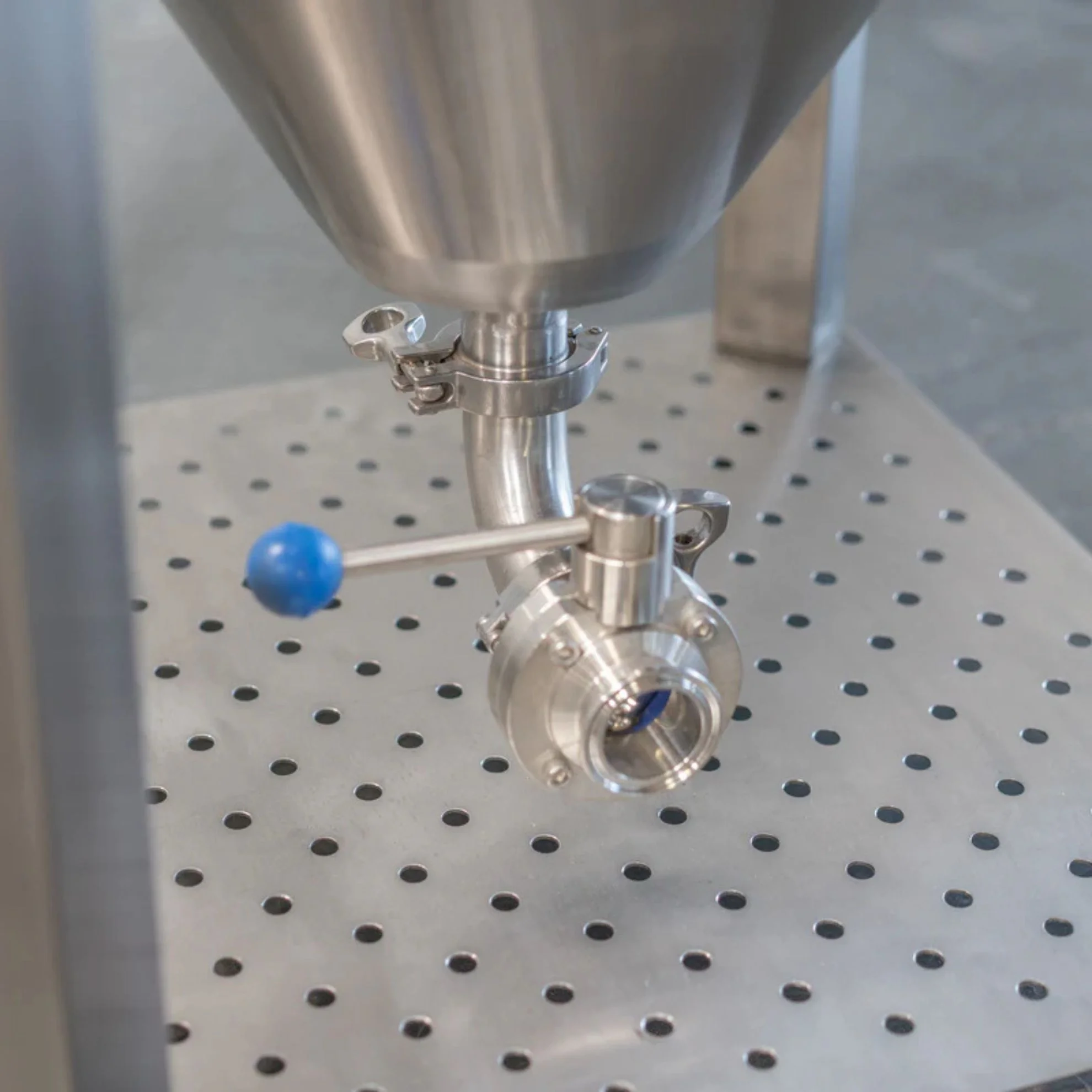

• 1.5″ lower dump port

Carbonation System

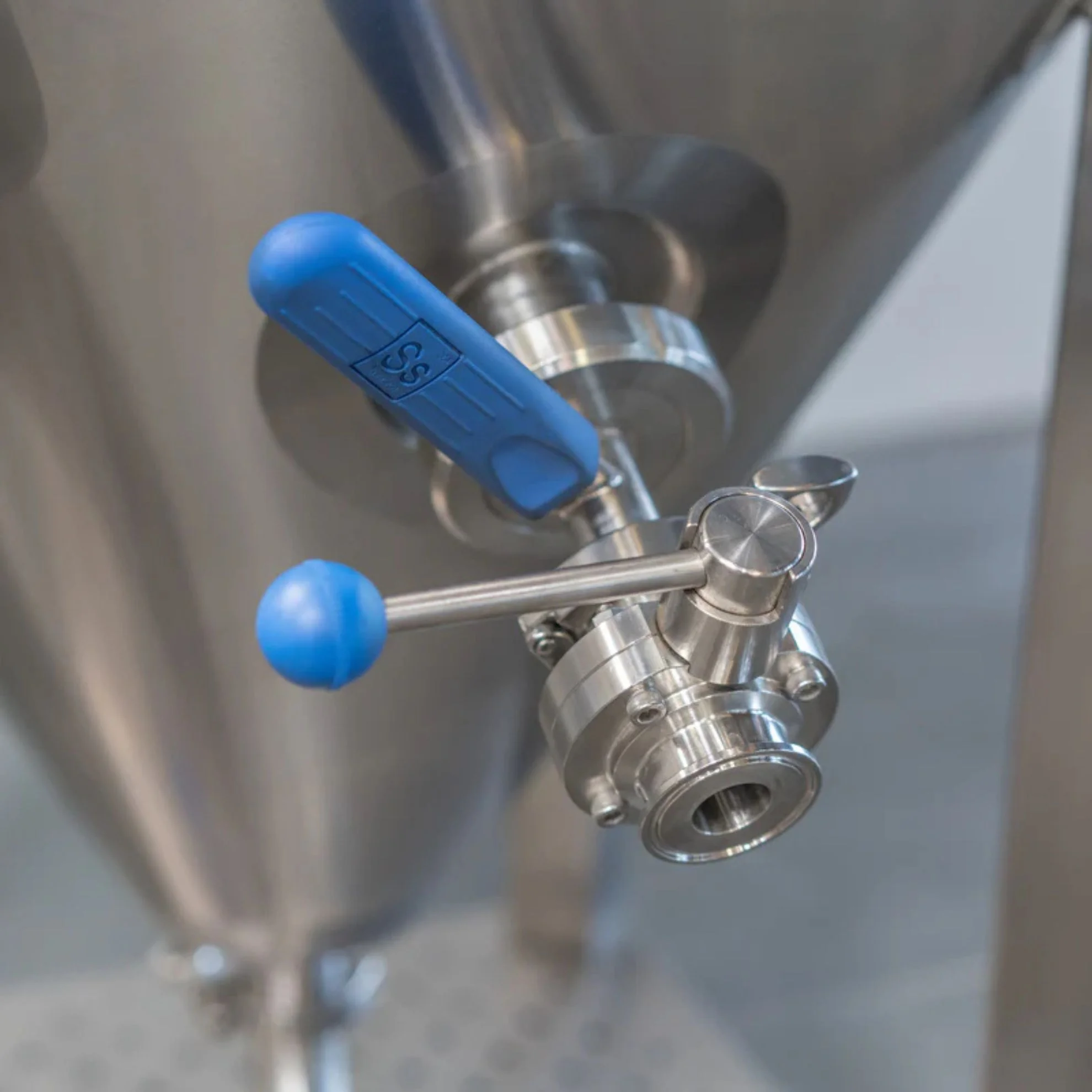

• 316 stainless steel carb stone with valve

Temperature Monitoring

• Cone-mounted sleeved RTD port

• RTD probe included

Structure & Support

• 4 mm lower stiffener plate

• Adjustable feet

Dimensions

• 3.5 bbl: 45″ width x 80″ height

3.5 bbl | Nano Jacketed Unitank documents and materials

For detailed technical drawings, manuals, and setup guidance, refer to the official Ss Brewtech documentation via the supplier link provided.
