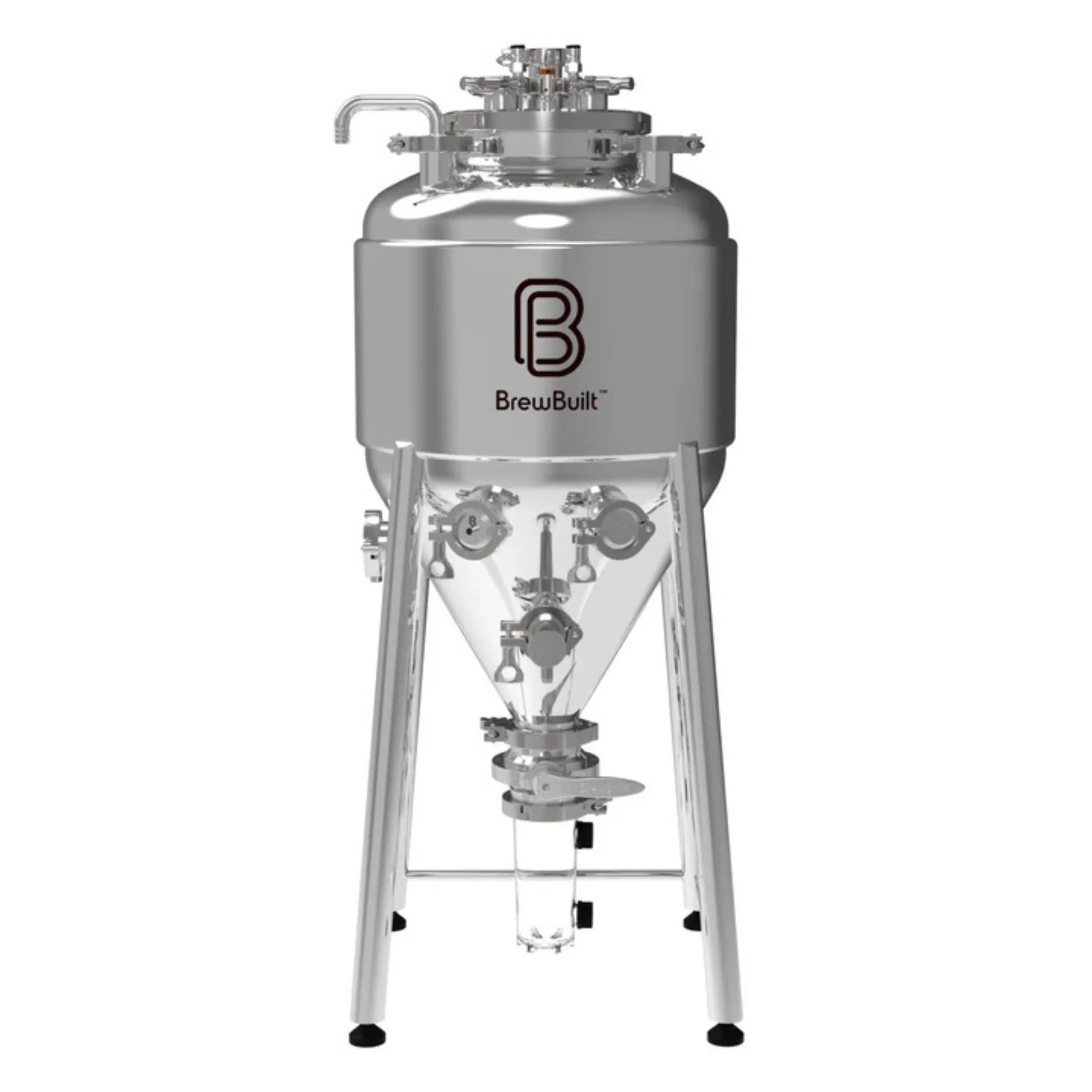

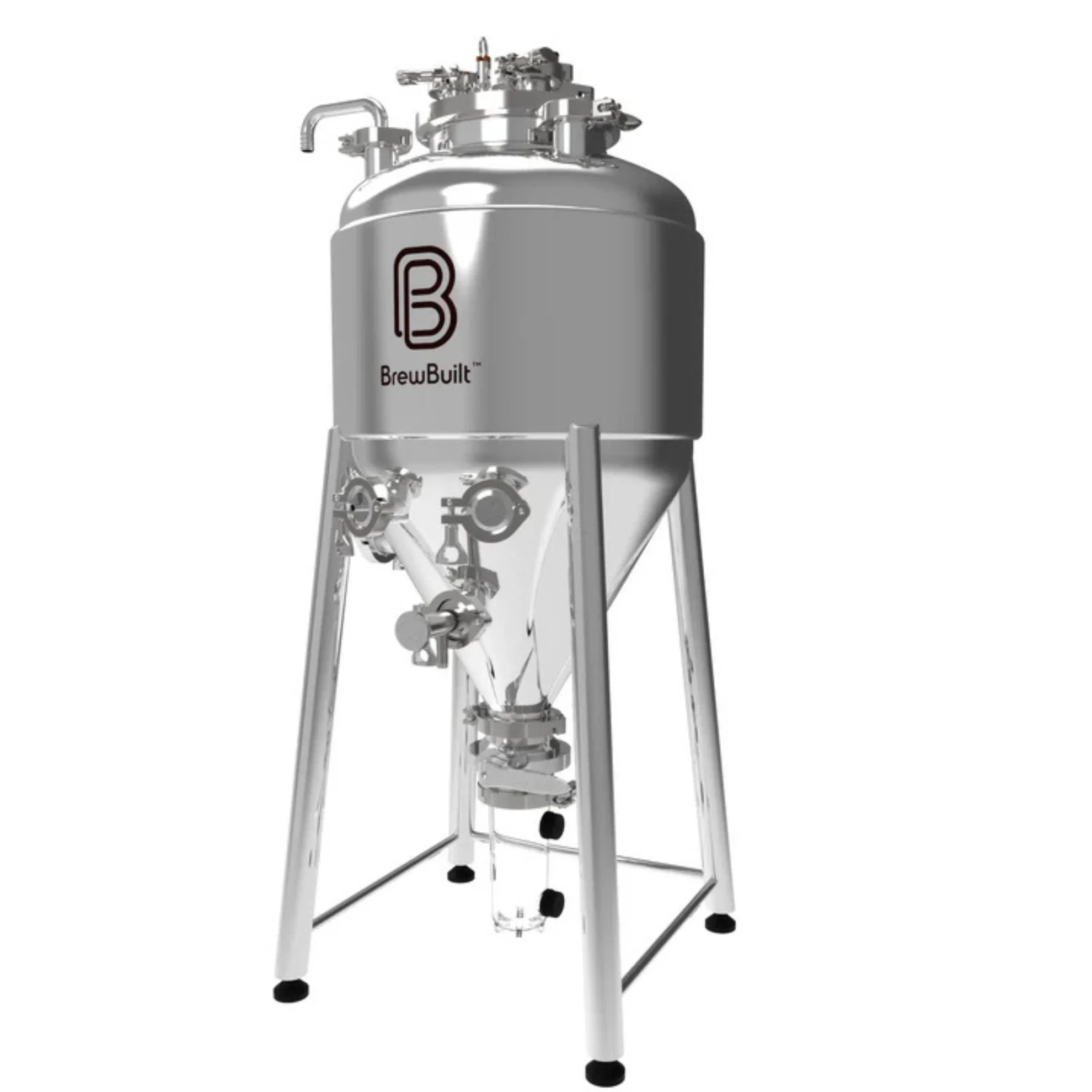

X3 Jacketed Uni Conical Fermenter

Take your brewing setup to a true pro level with the X3 Jacketed Uni Conical Fermenter—engineered to give you maximum control, unmatched sanitation, and beautifully clean beer every time.

Why You’ll Love The X3 Jacketed Uni Conical Fermenter

1. Powerful cooling without compromising cleanliness
   The external cooling jacket with tri-clamp ports gives you efficient temperature control—without internal coils—so cleaning stays simple and sanitary.

2. Closed, pressure-capable brewing system
   With the Pressure Pack and Clear Float technology, you can ferment, carbonate, and transfer—all while minimising oxygen exposure and pulling clearer beer from the top down.

3. Built for stability and confidence
   The reinforced four-leg base provides a rock-solid foundation, so you can brew, move, and operate with total peace of mind—even when fully loaded.

4. Designed for flexibility and growth
   With multiple tri-clamp ports, horizontal cone ports, and accessory compatibility, this system adapts to your process—whether you’re refining recipes or scaling up.

Your life, with the X3 Jacketed Uni Conical Fermenter

Everything feels more dialled in.

You’re not working around limitations—you’re working with a system that gives you options. Temperature control is consistent. Transfers are clean. Yeast management is simple.

You can experiment, refine, and push your brewing further—without worrying about sanitation or stability.

This is where your setup starts to look—and perform—like a professional brewery.

The X3 Jacketed Uni Conical Fermenter in a nutshell:

1. Clear Float Technology – Draw beer from the top down for clearer pours, reducing sediment and improving final quality.

2. Flex Chamber Collection System – A clear, pressurisable bottom chamber lets you monitor fermentation, harvest yeast, and remove trub with ease.

3. Oversized 3” Dump Valve – One of the largest in its class, making dry hopping and yeast dumping smoother and clog-free.

4. 8” Tri-Clamp Lid Opening – Wide, secure access for easy cleaning and maintenance without complicated clamps.

X3 Jacketed Uni Conical Fermenter specifications

Construction

• 304 stainless steel

• Mirror polish finish inside and out

• Welded, ground, and polished interior welds

Cooling System

• External cooling jacket

• 1.5″ tri-clamp cooling connections

• Neoprene insulation jacket included

Pressure & Fermentation

• Built-in 15 PSI PRV (pressure fermentation requires optional kit)

• Pressure Pack with Clear Float floating dip tube

Ports & Connections

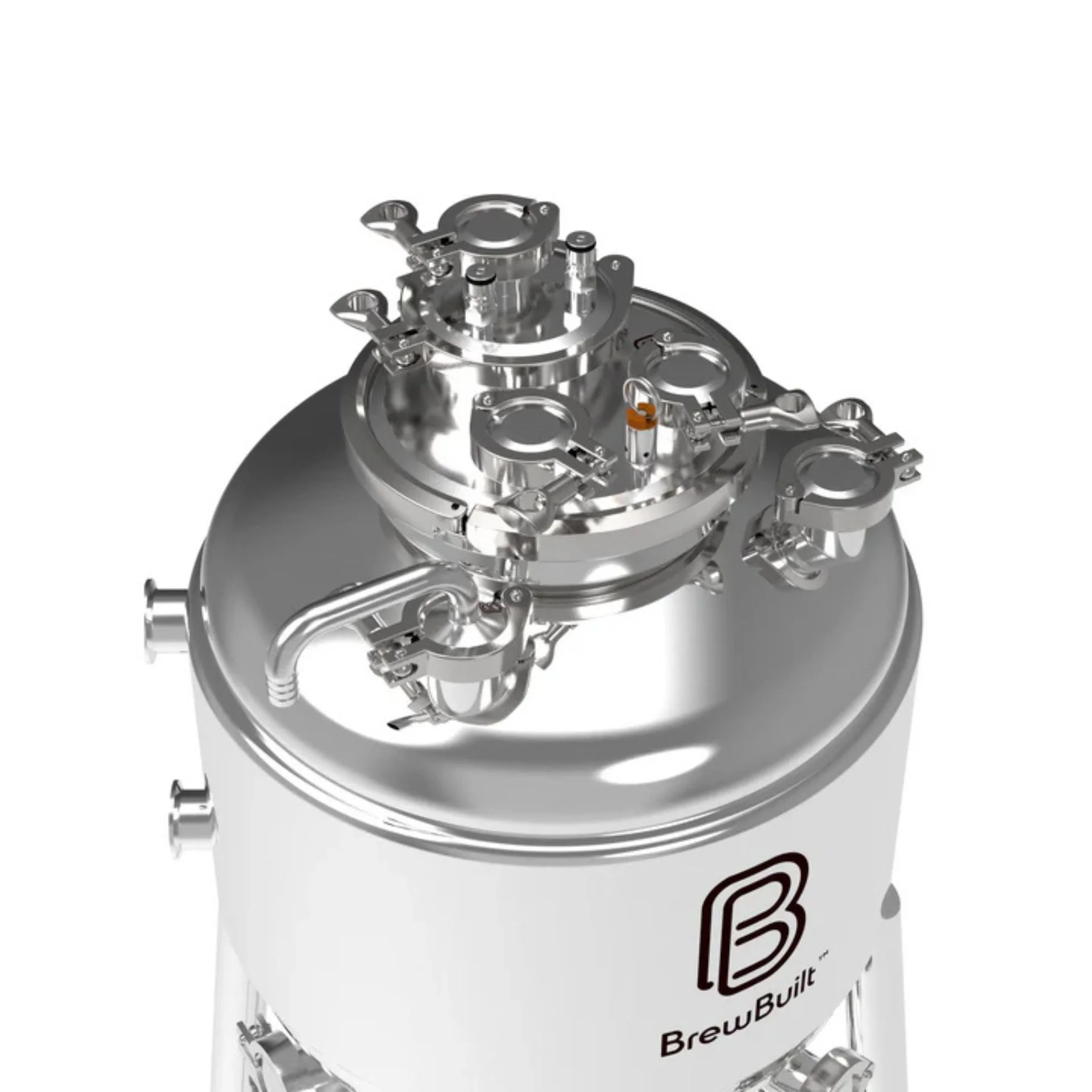

• (1) 8″ tri-clamp lid opening with clamp

• (5) 1.5″ tri-clamp lid ports

• (3) horizontal cone ports

• (1) 2″ tri-clamp port (immersion heater compatible)

• 3″ tri-clamp bottom dump with butterfly valve

• 1.5″ thermowell port

Fermentation Features

• Flex Chamber collection jar (clear, pressure capable)

• Rotatable racking via floating dip tube system

• Blow-off tubing with downward-facing barb

Structure & Support

• Reinforced four-leg base

• Adjustable feet

X3 Jacketed Uni Conical Fermenter documents and materials

For full technical specifications, setup instructions, and compatibility guidance, please refer to the supplier documentation provided.

Safety Disclaimer:
This product should be used at your own risk. The information provided on this page is for general guidance only and should not be considered professional or medical advice. Brewing involves pressure, temperature, and chemical processes that can vary between users. Always follow manufacturer guidelines and consult a qualified professional if you are unsure.
